Year Of Establishment 1986

EASY Pre-Insulated Ducts manufacturing facility is set up in Dubai Investment Park 2. The panel production process is designed around new-generation blowing agents that are specially formulated and developed to produce environmentally friendly panels for air conditioning ducting application.  Pre-empting changes in government environmental laws that mandated a reduction of HCFC usage by 2040, Unigulf Air Conditioning Industries LLC began working well in advance to become an early adopter of these laws. Unigulf implemented constructive changes in product chemistry and introduced significant upgrades to the manufacturing process by setting up a new state-of-the-art production unit in the second quarter of 2017. The company collaborated with reputable chemical suppliers and industry experts to develop a special Polyol blend to successfully achieve ODP level of zero and GWP of 1.

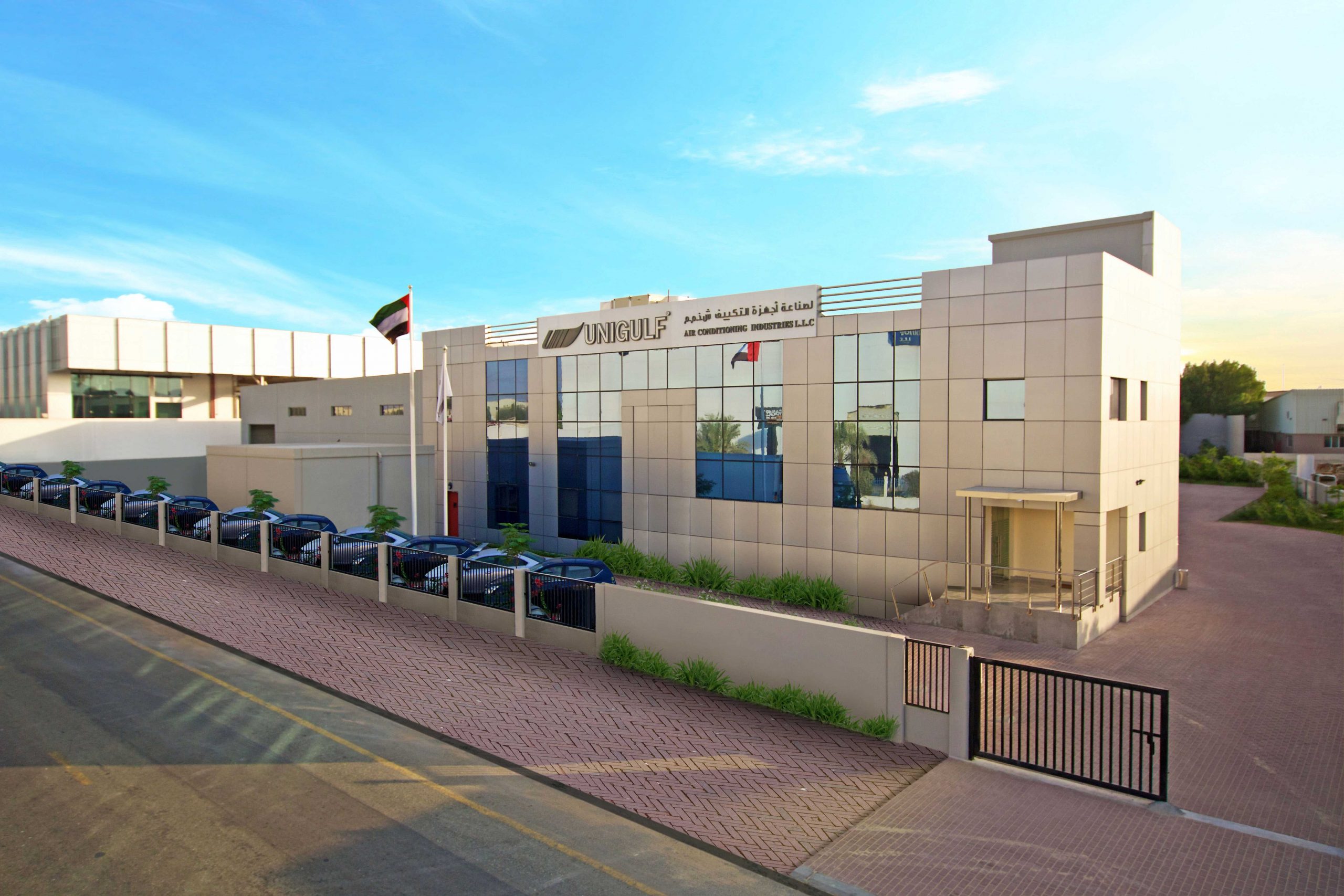

Building-Image02

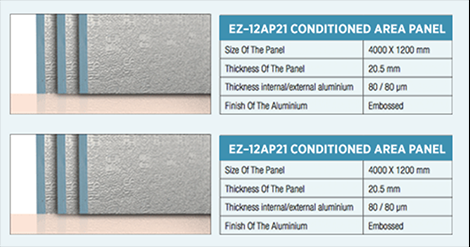

Easy-Duct-System-1-1

Conditioned Area Application

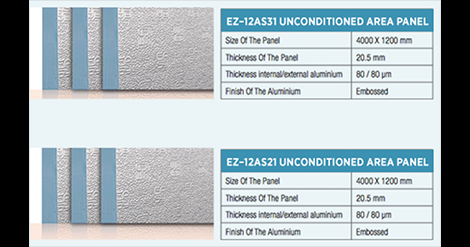

Easy-Duct-System-2-2

Conditioned Area Application

Accessories

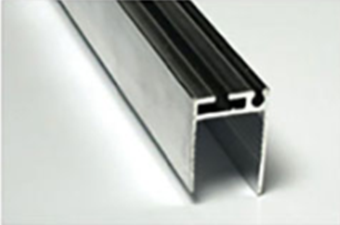

EZ-F102L0 - Invisible flange joint aluminum 20 mm

This special alumiunium flange permits 20 mm th. ducts to be joined with extremely low leakage. The bars are supplied in 4-meter lengths.

11

EZ-F103L0 - Invisible flange joint aluminum 30 mm

This special alumiunium flange permits 30 mm th. ducts to be joined with extremely low leakage. The bars are supplied in 4 meter lengths.

22

EZ-Fi12L0 - Invisible flange joint polymer 20 mm

This special alumiunium flange permits 20 mm th. ducts to be joined with extremely low leakage. The bars are supplied in 4 meter lengths.

33

EZ-FTO2L0 / EZ-FTO3L0 - Tee connector flange joint 20/30 mm

This flange permits the flanging of one duct into the side of another take-offs as tap-in or plenum chamber. The bars are supplied in 4 meter length.

44

EZ-FHOOLO - H polymer bayonet

Built in shock-resistant polymer, this piece permits "invisible flanges" to be connected. Supplied in 4 meter rods.

55

EZ-AP92L0 / EZ-AP93L0 - Covering angle 20/30 m

Grey polymer covering angle.

66

EZ-AZ92L0 / EZ-AZ93L0 - Zinc-coated steel angle bracket 20/30 mm

1.5 mm thick zinc-coated steel angle bracket.

77

Accessories (AHU & Grill Connections)

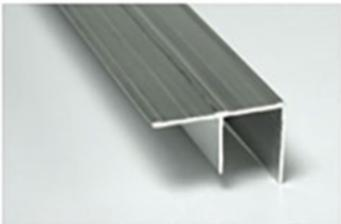

EZ-AZ92L0 / EZ-AZ93L0 - Zinc-coated steel angle bracket 20/30 mm

Permits all accessories with fastening frames higher than 20 mm to be fastened to the ducts. Supplied in 4 meter rods.

88

Used to fasten ducts to air handling units and in the assembly of linear diffusers. This section bar is supplied in 4 meter rods.

99

Accessories (Reinforcement)

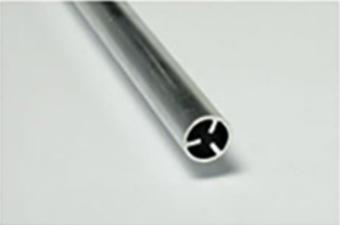

EZ-AZ92L0 / EZ-AZ93L0 - Zinc-coated steel angle bracket 20/30 mm

Special high stiffness aluminium alloy reinforcement section bar. Bars are supplied in 4 meters rods.

111

Aluminium disk to distribute the pressure created at the centre over a wider surface to prevent damage to the panel. Disk diameter 100mm, hole diameter 10 mm.

222

Accessories (Glue, Tape & Sealant)

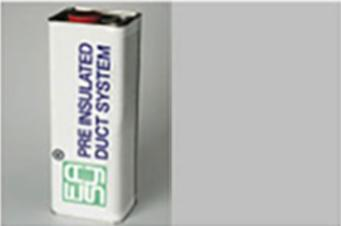

EZ-AG 90L0 - Paint glue 15 kg

Special glue formulated to obtain perfect adhesion on easy panels foam. The product is supplied ready-to-use. Diluition is possibile with special solvent

333

EZ-AT89L0 / 90L0 - Easy aluminum tape

Self-adhesive aluminium tape to use in the construction of the ducts.

444

EZ-AG 90L0 - Paint glue 15 kg

Singe component silicone sealant. 280 cc stick.

555

EZ-AT89L0 / 90L0 - Easy aluminum tape

Medium-viscosity adhesive for the gluing of aluminium and Polymer section bars. 500 gr pack

666
